Holzworth HSM12001B/HSM18001B模块化射频信号发生器
点击索取报价，选择产品以及所需配件，发送索价申请后，将有专人与您联系
- 产品概述
- 配置选型
RF SYNTHESIZERS
SINGLE CHANNEL PLATFORM

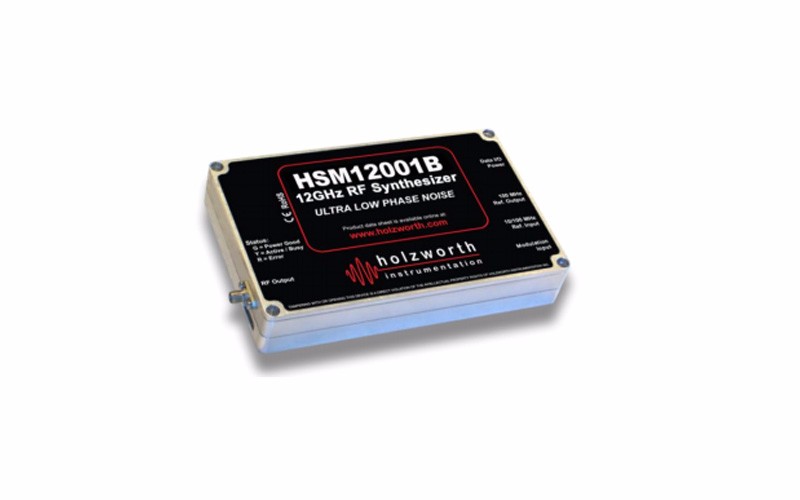

Holzworth's RF Synthesizers Modules were originally designed as the internal, tunable LO test sources for Holzworth phase noise analyzer products. Due to the need for easy integration, the HSM Series designs incorporate a long list of electrical and mechanical features to satisfy the demanding requirements of today's high performance communications systems and integrated test systems. FIELD PROVEN RELIABLITY with MTBFs exceeding 240kHrs.
HSM SERIES: SINGLE CHANNEL MODULES
The Holzworth HSM Series RF Synthesizers are microwave CW sources that are architected on a non-PLL based platform.
The digital-analog hybrid design provides excellent phase noise performance and spurious response, which compliment the phase coherent nature of these digital-analog hybrid signal sources.
The HSM Series offers several models that cover increasingly wider bandwidths so users can best match an application requirement while optimizing the price point.
HSM SERIES SPECIFICATIONS
HSM SERIES FREQUENCY SWITCHING SPEED

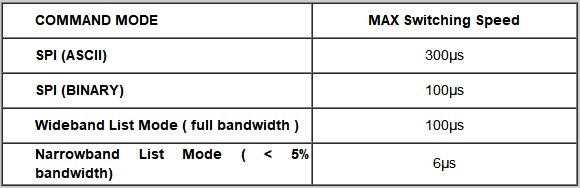

The frequency switching speed of the HSM Series is faster than most. Unlike PLL based architectures, the non-PLL based HSM Series does not exhibit any significant settling time after a frequency change. Settling time is not always clearly specified in PLL based synthesizer datasheets even though it is often a large contributor to the overall switching speed.
BURST MODE SELF PULSE MODULATION
Pulse modulation "burst mode" does not require an external stimulus signal. The programmable self pulse modulation function exhibits very fast rise and fall times with minimal overshoot or ringing.

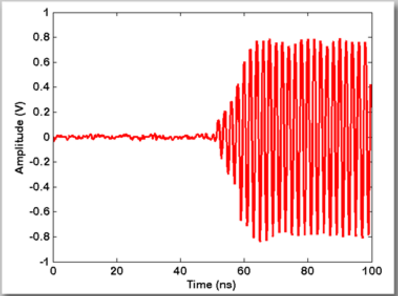

The screen shot shown here demonstrates an approximate 10ns risetime (Tr) when operating at a frequency of 500MHz. The pulse width is approximately 100us in this example.
COMMAND / CONTROL

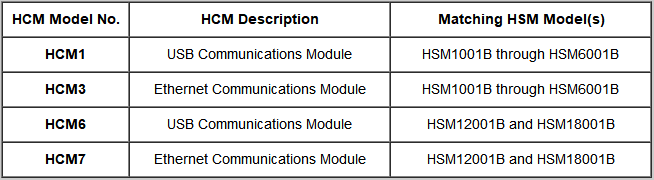

The native I/O interface for the HSM Series is via SPI, which is preferred for most integrated applications. When used with a USB Communications Module or an Ethernet Communications Module, these synthesizer modules can be controlled with the Holzworth Application GUI or directly via addressed command lines.
